Xnova XTS 2618-1580KV Brushless Motor (Shaft A)
Original price was: $93.00.$65.10Current price is: $65.10.
- Satisfaction Guaranteed
- 7 days return and exchange
- Your Security is Our Promise
- Your satisfaction is 100% guaranteed.

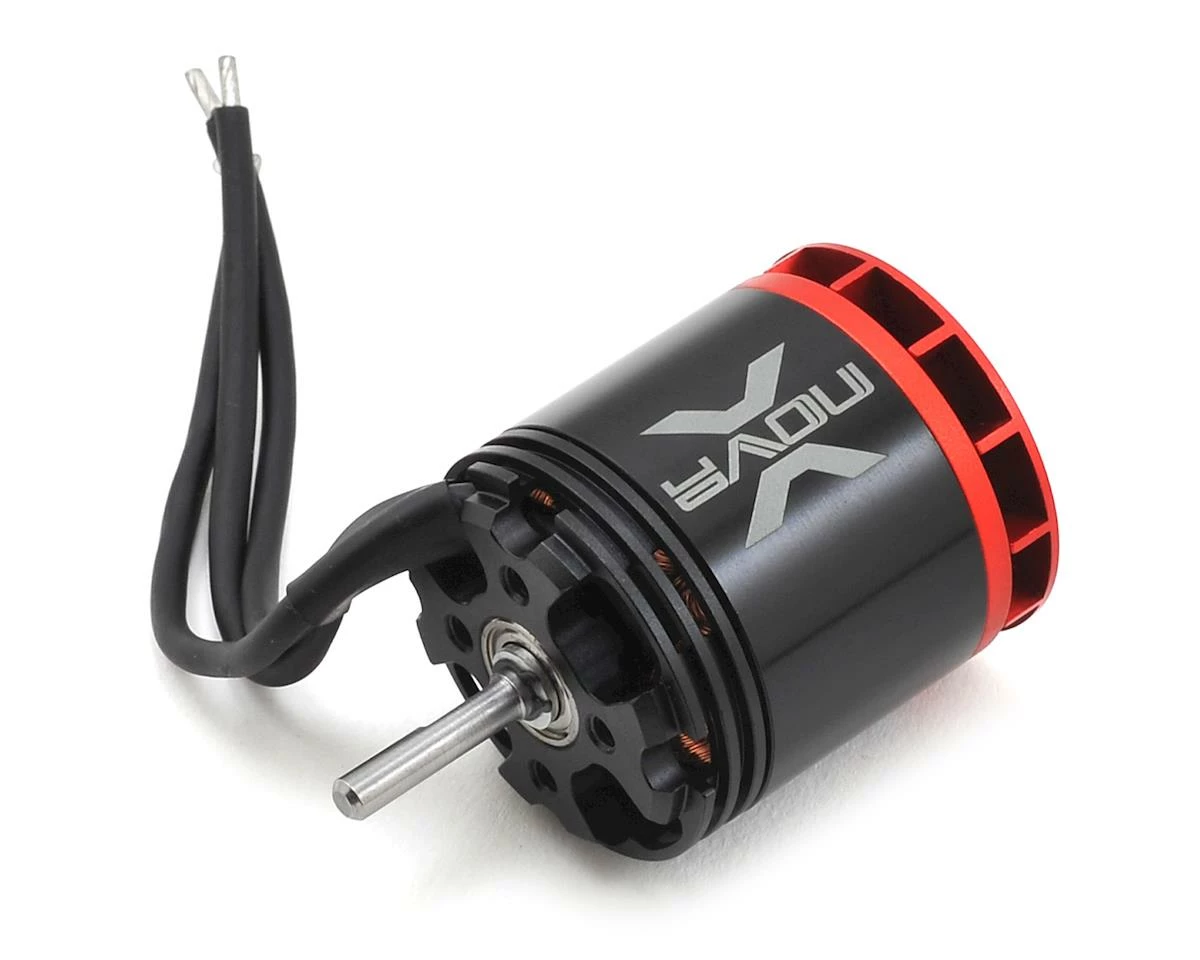

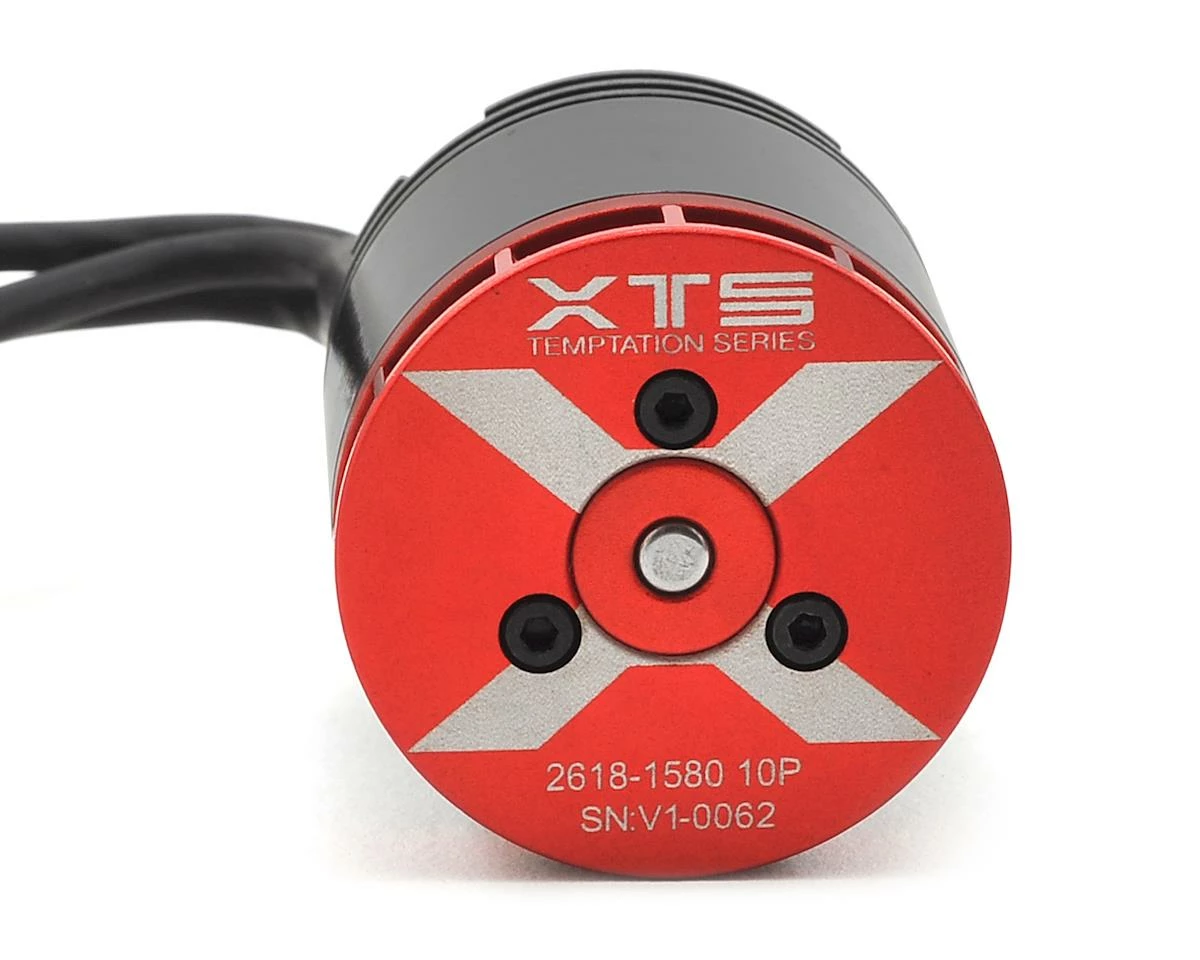

This is a Xnova XTS 2618-1580KV Brushless Motor (Shaft A)
Specifications:
Slots & Poles: 12n10p
Winding: T 11D
rpm/V: 1580
Volt: (V) 10 / 22.2
Io(A): 2.0 / 3.5
Rm (mohm): 20
Weight (without connector):Â 110g
Body Length (no shaft): 38.1mm
Diameter: 33mm
Shaft Length: 17.4mm
Shaft Dia.: A=3.5mm
Mounting Holes CTC Distance: 19*2 & 16*2mm
Mounting Screw:Â M3x0.5
Max Eff. Curr.: 31.62 / 62.33
Max Eff.: 87.35 / 88.77
Kt (Nm/A: 0.006
Km (Nm/sqrt(w)): 0.0427
Max Continuous Power(Watts): 800
Peak Continuous Power(Watts): (2 sec) 1060
Max Continuous Current(Amps): 40
This product was added to our catalog on August 18, 2016
