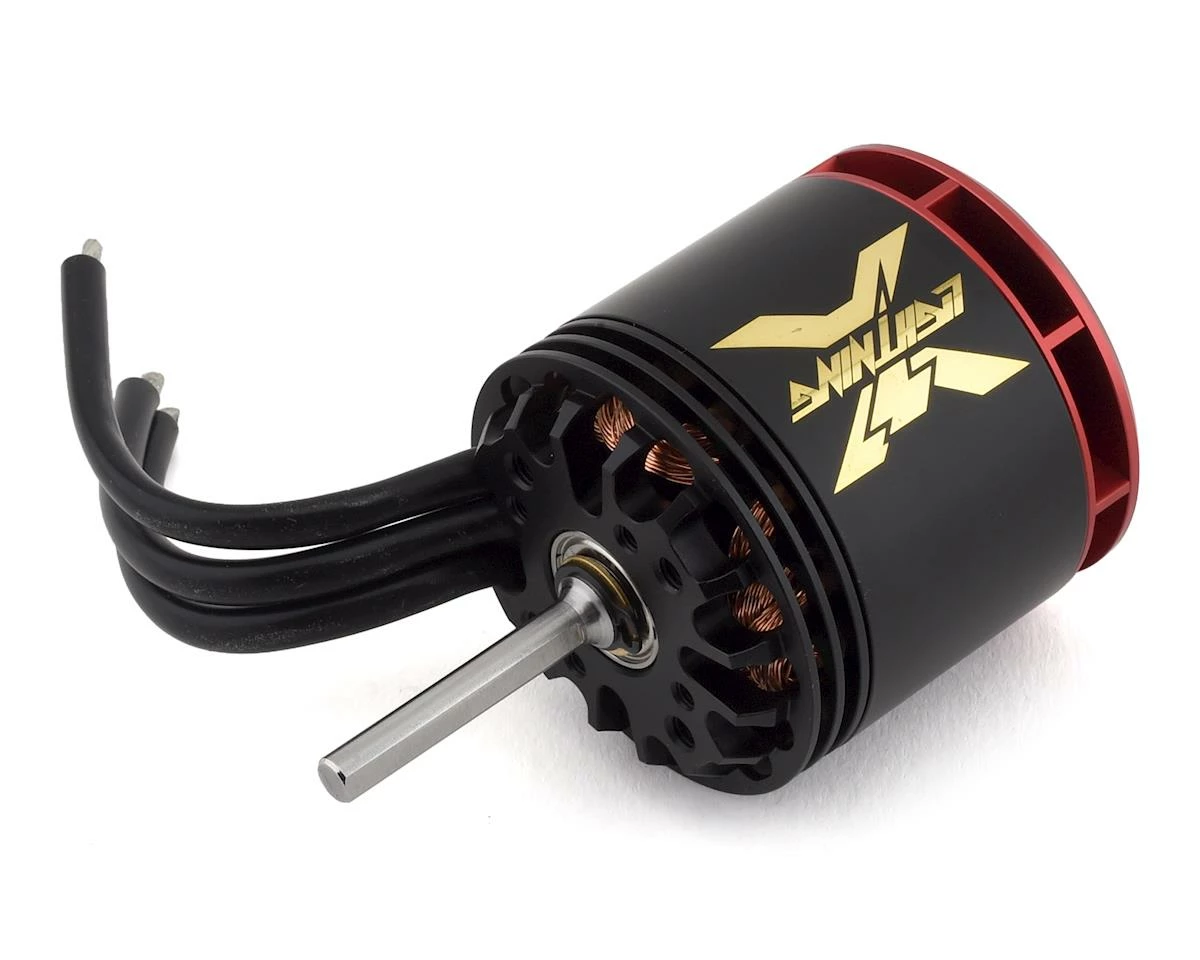

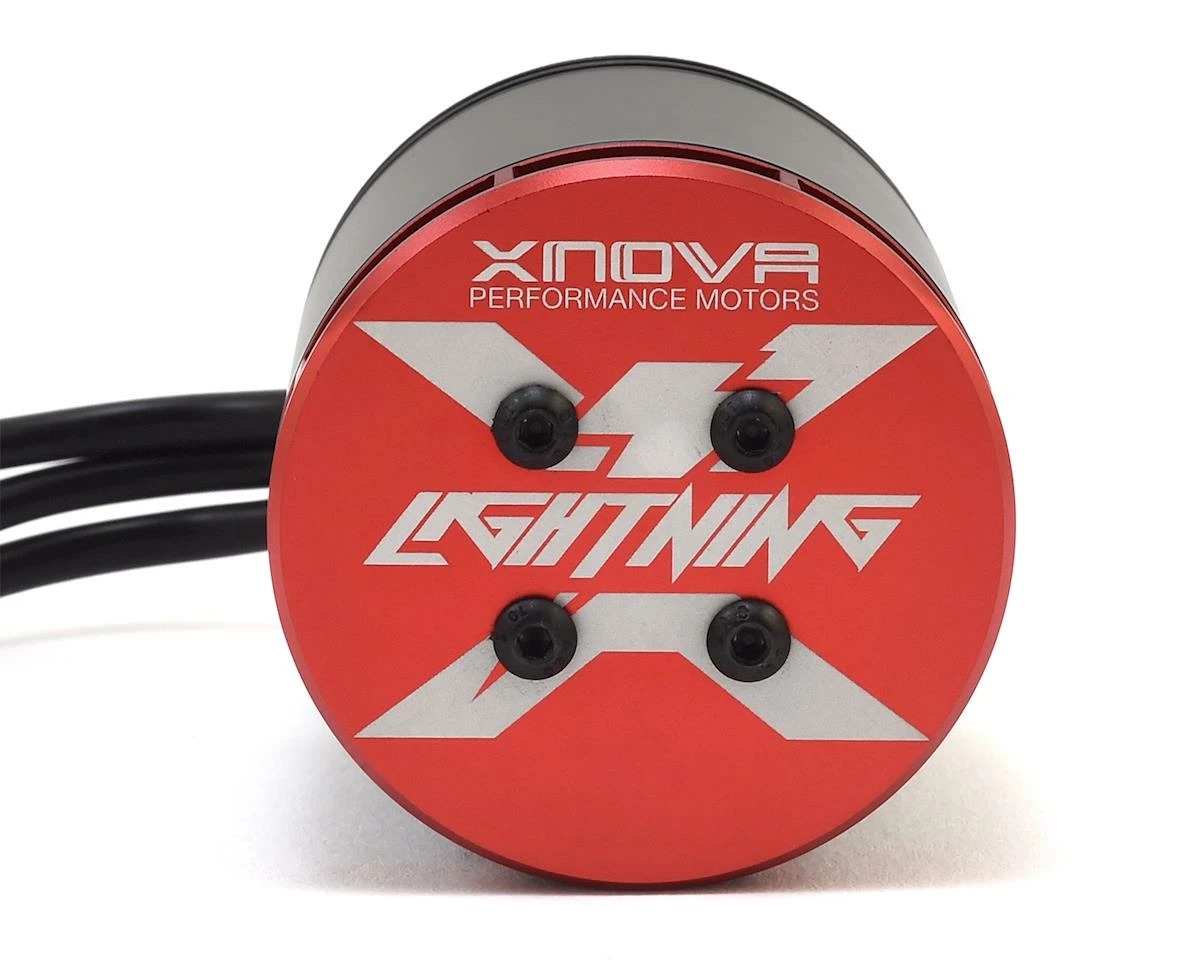

Xnova Lightning 4020-1350kV Brushless Motor (5x32mm D Shaft)

This is the Xnova Lightning 4020-1350KV 1.5Y Brushless Motor with a 5mm “Type D” 32mm Shaft. This high performance brushless motor has the best power to weight ratio of the Xnova 4020 line. This is an ideal option for the Synergy 516 helicopter and is a great choice for Intermediate to Hard 3D flying styles.

Features:

• Higher efficiency over previous generation
• Thinner stator laminations
• Lower temperatures
• Smooth operation; no cogging
• Specialized wires,heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 1.5Y
rpm/V: 1350
Weight (without connector): 350g
Body Length (no shaft): 51.2mm
Diameter: 49.5mm
Shaft Length: 32mm
Shaft Diameter: 5mm
Mounting Holes CTC Distance: 25mm
Mounting Screw: 4* M3
Max Eff. Current: 74.16 | 136.63 | 170.78

Max Eff.: 91.1 | 91.80 | 91.80
Kt (Nm/A): 0.0071
Km (Nm/sqrt(w)): 0.0913
Max Continuous Power: 2600W
Peak Continuous Power (5 sec): 3200W
Max cont. current (A): 130

This product was added to our catalog on January 4, 2019
