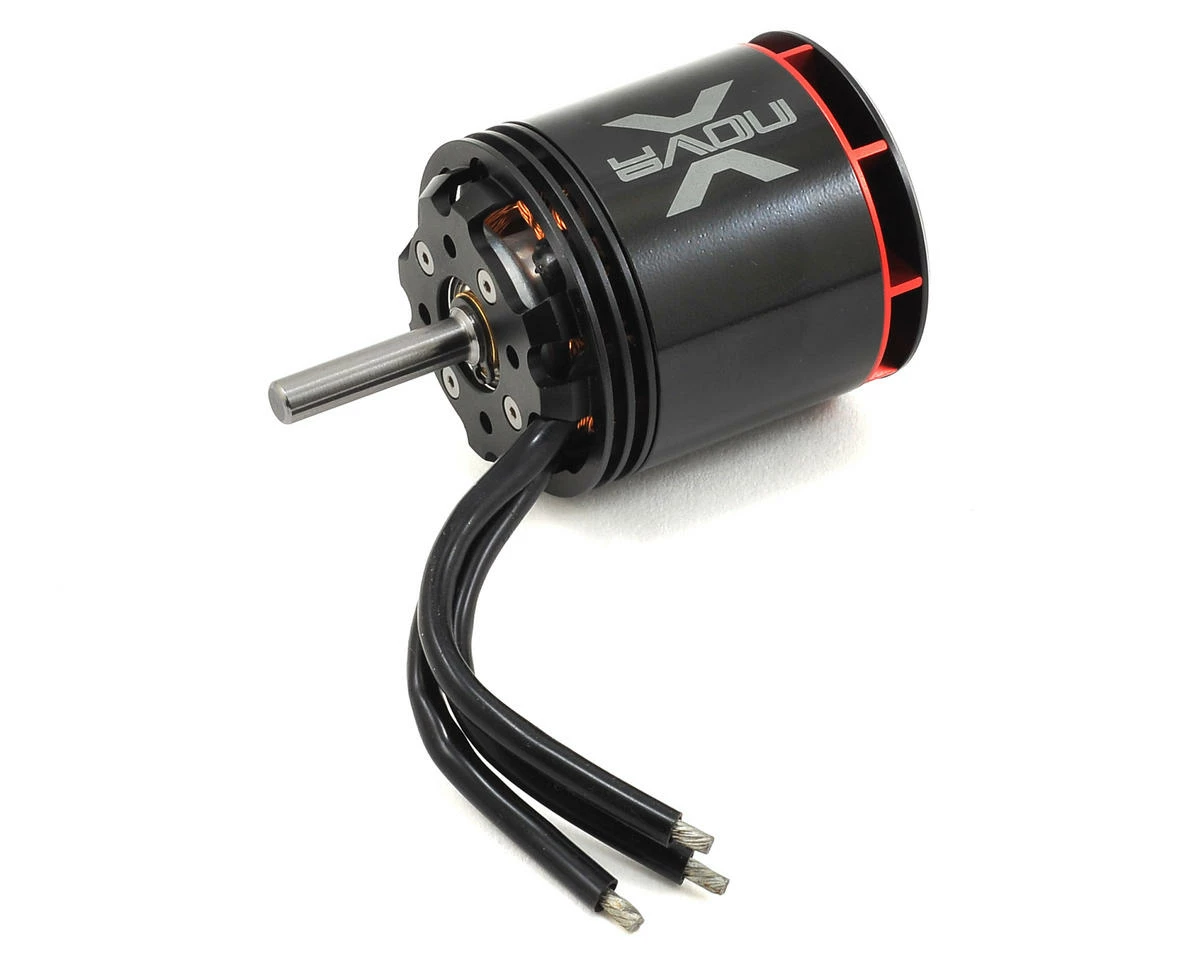

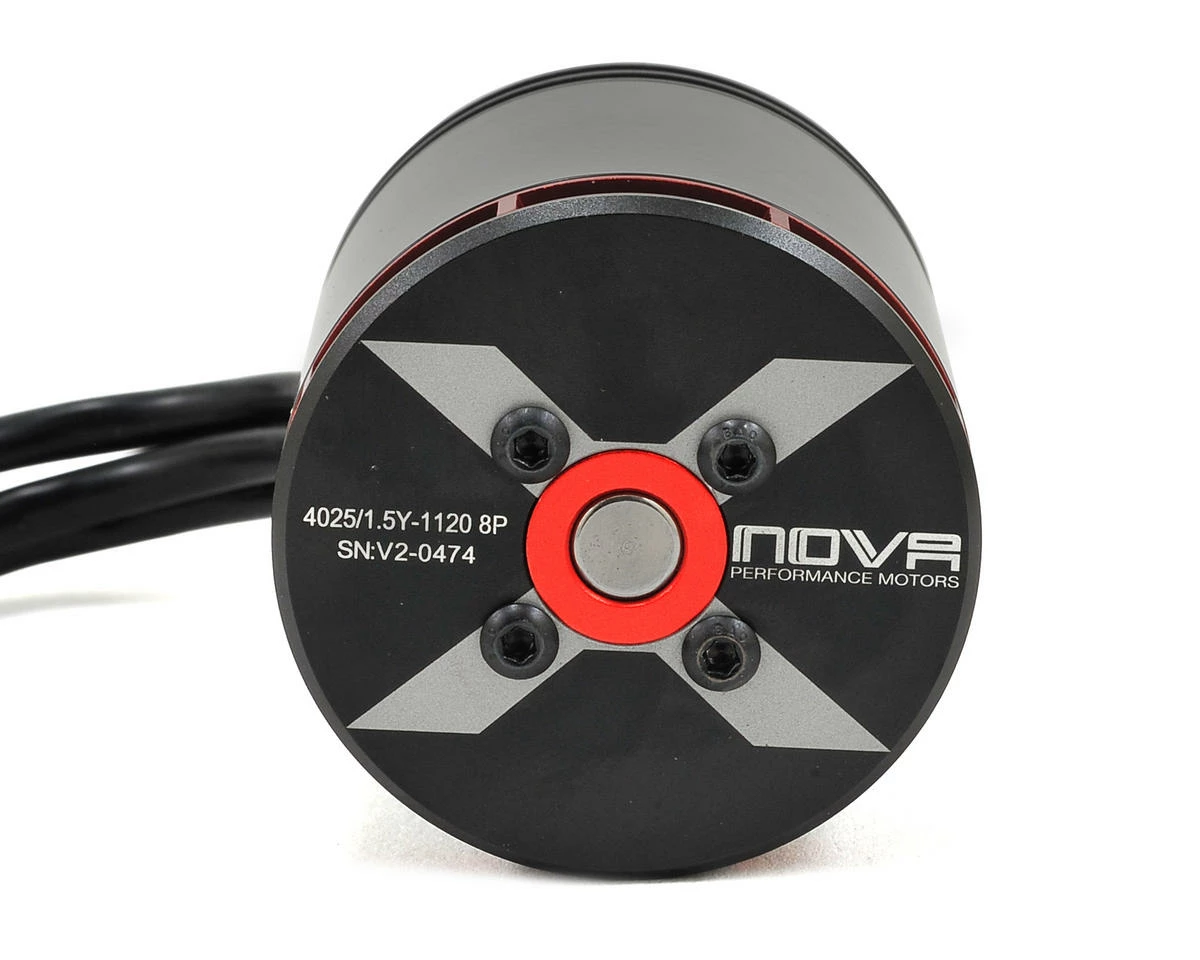

Xnova 4025-1120KV 1.5Y V3 Brushless Motor W/6mm Shaft (Shaft B)

This is the Xnova 4025-1120KV 1.5Y Brushless Motor with a 6mm “Type B” 28mm Shaft. This high performance brushless motor was developed for the Goblin 570 and is recommended for hard 3D flying on 6S.

Features:

• “B Shaft” 28mm long, 6mm diameter
• Ideal for Goblin 570
• Good for hard 3D on 6S
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Marked leading high efficiency up to 93.5%
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 1.5Y
rpm/V: 1120
Volt (V): 10 | 20 | 25
Io(A): 2.7 | 3.2 | 3.6
Rm (mohm): 7.3 | 7.3 | 7.3
Weight (without connector): 384g
Body Length (no shaft): 55.75mm
Diameter: 49.5mm
Shaft Length: 28mm
Shaft Diameter: 6mm
Max Eff. Curr.: 60.82 | 93.63 | 111.03
Max Eff.: 91.12 | 93.16 | 93.52
Kt (Nm/A): 0.0085
Km (Nm/sqrt(w)): 0.0998
Max Continuous Power (Watts): 3000
Peak Continuous Power (Watts) (5 sec): 4000
Max cont. current (A): 110



This product was added to our catalog on July 7, 2015
