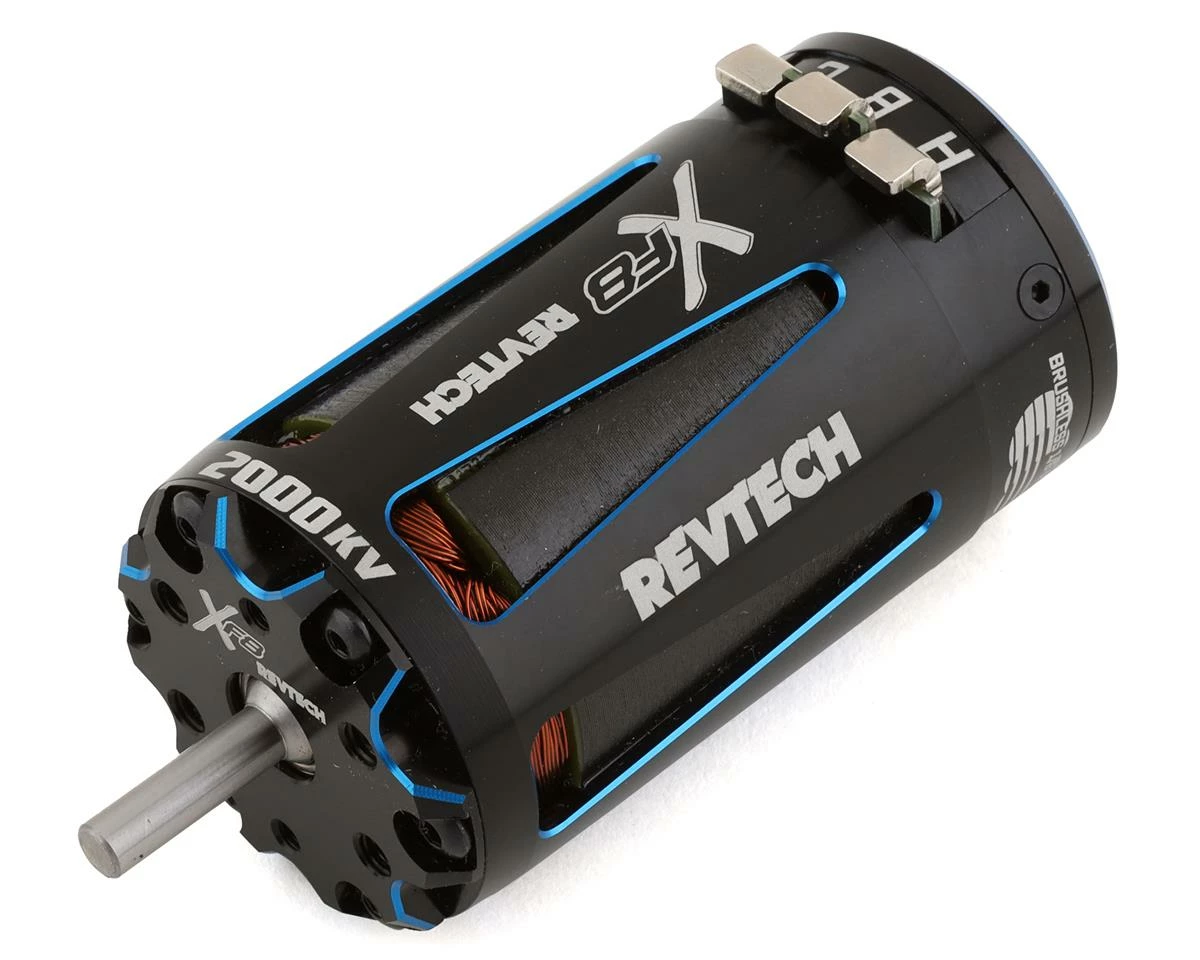

Trinity Revtech XF8 1/8 Scale Buggy Sensored Brushless Motor (2000kV)

The Trinity XF8 1/8 Scale Buggy Sensored Brushless Motor brings innovative construction making the XF8 a potent and competitive motor option. Available in several Kv options there is an ideal motor choice for a variety of tracks and conditions. The XF8 features an innovative staggered 8-magnet design offering low cogging and excellent torque improving slow speed control and throttle feel around corners. Keeping power consistent an open motor case design was used to increase airflow and lower motor temps. The XF8 series has several updated features separating it apart from the rest.

Features:

• Innovative 8-magnet “staggered Magnet” rotor that offers low cogging effect and torque pulsation greatly improves control feel around corners.
• Mechanical timing adjustable 40 degrees (CCW/CW).
• Open Can Design to increase internal air circulation and reduces heat.
• Rebuildable design for easy routine maintenance which will prolong the motor life.
• CNC machined aluminum Can, high purity copper windings, rotor structure, high-quality alloy steel output shaft, and high-precision bearings for high durability and smoothness.
• Updated 90 Degree “U” solder tabs at the bottom of the motor for easy soldering and wiring.
• Designed to accommodate all 1:8 applications
• High-Strength and Heat Resistant Magnet Formula
• Advanced Hall Sensing System design separating the rotor magnet from the magnet pickup that Insures a Clear Signal and Protects from Other Signal Interference.
• Precision CNC Machined Aluminum Alloy Case
• High Heat Resistant Pure Copper Wire
• Sensored and Sensorless Compatibility
• Replaceable Sensor Board
• Replaceable Rotor
• High RPM Precision Bearings
• Meets ROAR Specifications
