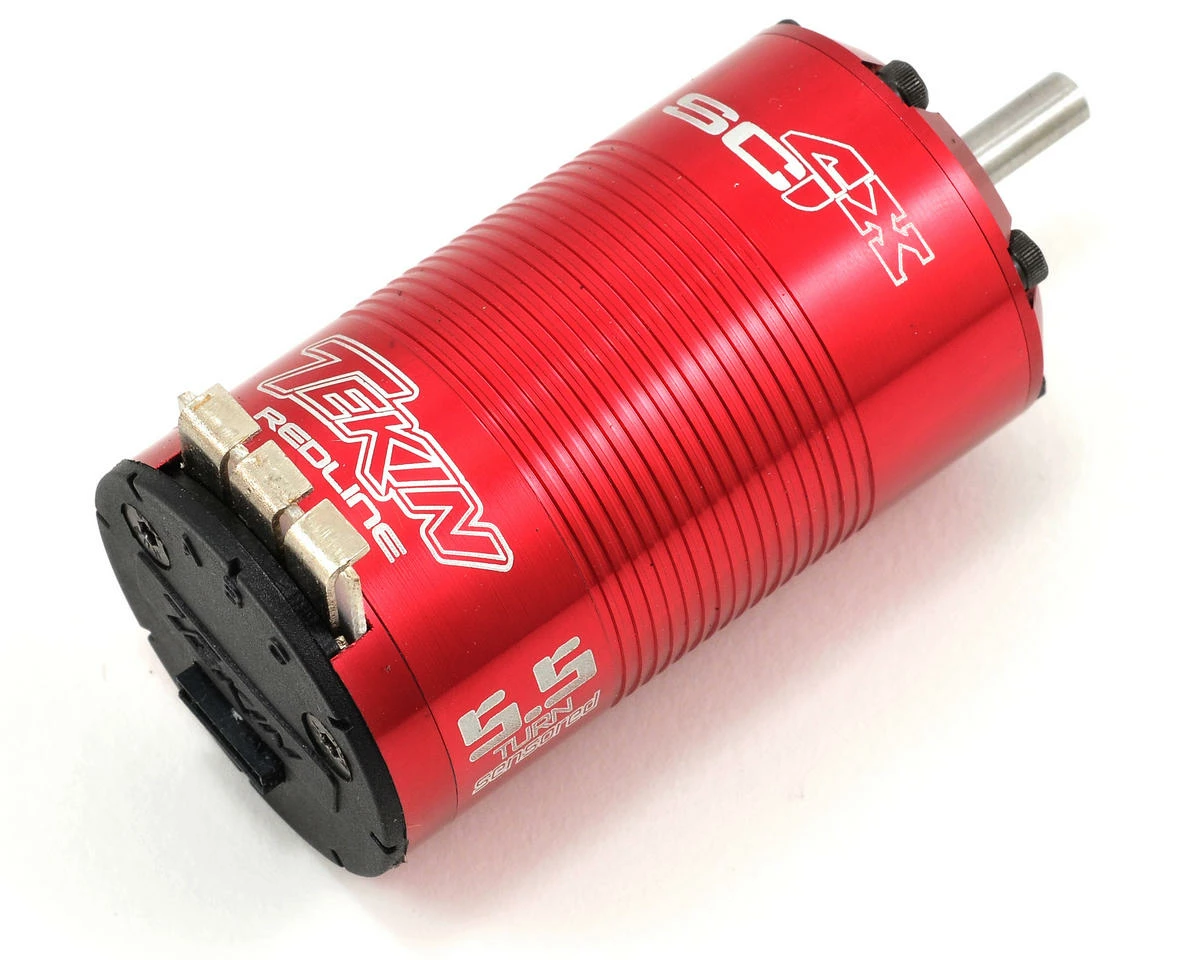

TEKIN Redline SC4X Sensored Brushless 550 Motor (5.5T)

This is the Tekin Redline SC4X 5.5 Turn, Sensored, Brushless 550 Motor. This motor is Tekin’s latest contribution to high performance competition oriented components. Designed specifically for the Pro4 Short Course class, this motor can be used with any 1:10th scale 4wd Short Course chassis. The longer can and rotor provide more torque and lower operating temperatures, giving you the power you need to stay ahead of the competition. Engineered for power and efficiency, the Redline SC4X motors offer a superior and reliable platform for your 4wd Short Course needs.

Features:

• Adjustable Timing
• Compatible with any Sensored/ Sensorless ESC
• CNC Machined Aluminum Heatsink Can
• A.B.E.C. 5 Oversized Bearings
• Neodymium Sintered Magnet
• High Power Solder Tabs

Specifications:
Turns: 5.5
Watts: 815
KV: 4,000
Rotor: 13mm
Can Material: 6061 T6 Aluminum
Diameter: 36mm
Length: 66mm
Weight: 8.30oz (234g)
Shaft: 15.3x5mm
Sensored: Yes
Mounting Holes: 3mm & 4mm

This product was added to our catalog on October 13, 2010
