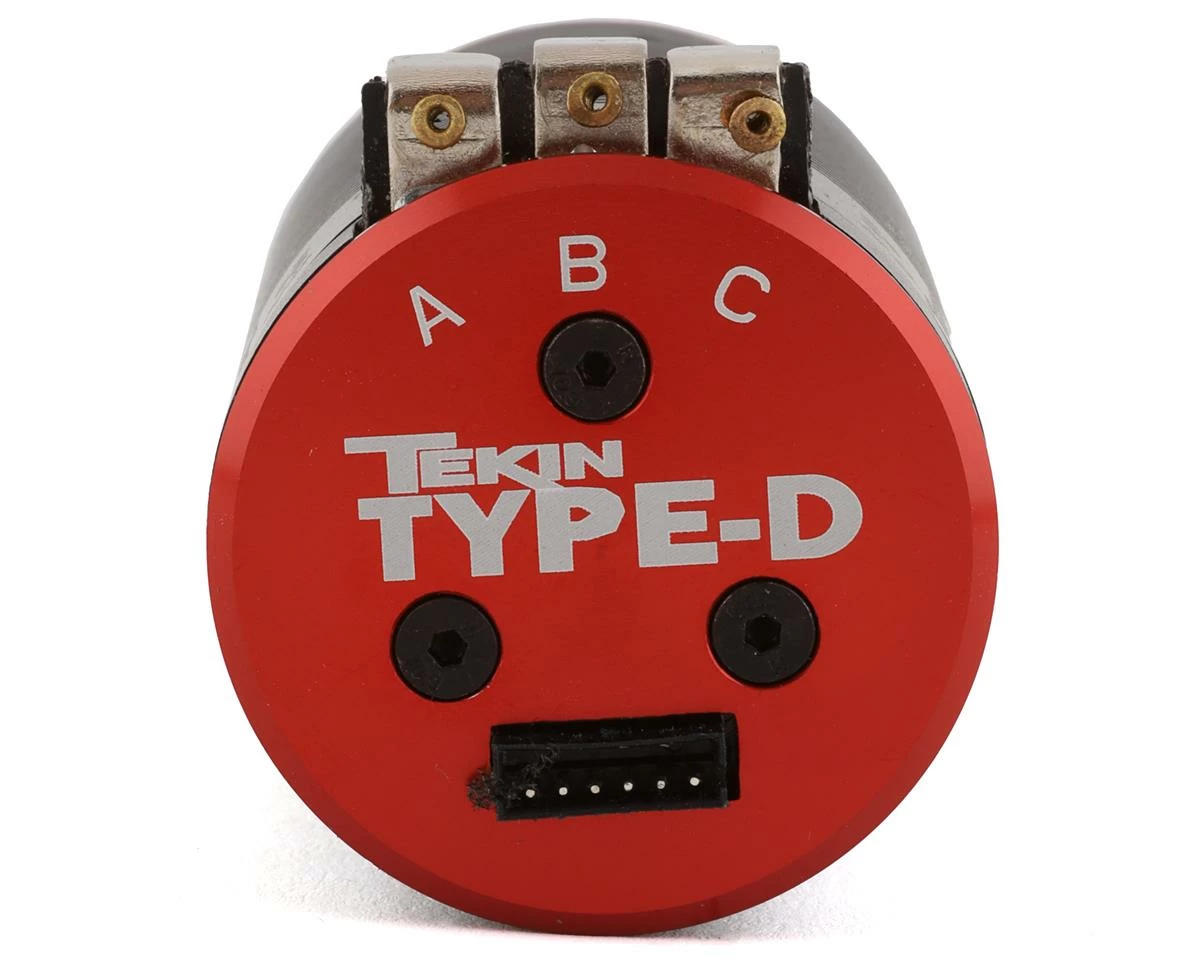

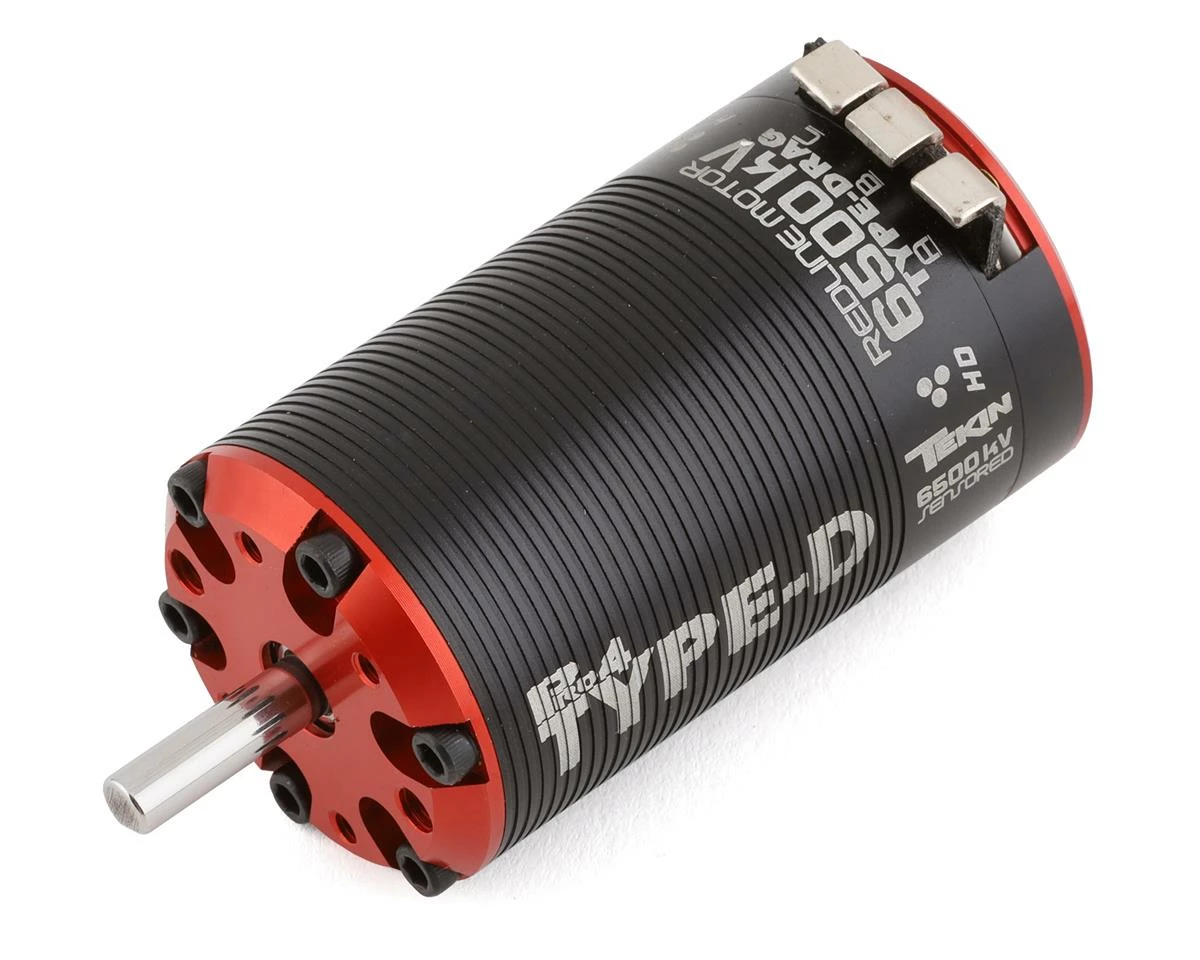

TEKIN Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor (6500kV)
Original price was: $159.99.$97.99Current price is: $97.99.
- Satisfaction Guaranteed
- 7 days return and exchange
- Your Security is Our Promise
- Your satisfaction is 100% guaranteed.
This is the Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor. Designed as a purpose built drag race motor this latest offering from Tekin brings massive power and torque to the market! This motor utilizes a 4-pole 12-slot design with an oversized Ultra Torque HD rotor. This creates a huge amount of power that doesn’t let up throughout the RPM range. From Pro Mod to Street Eliminator classes, these PRO series motors create power whenever you need it, giving you the advantage on the strip.
Features:
- 4 Pole 12 Slot High Torque Motor Design
- 1:10 Drag Racing Specific
- HD 550 Size Design Increases Power and Torque
- CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
- Neodymium Sintered Magnets
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity and Efficiency
- Low Resistance, High Power Solder Tabs

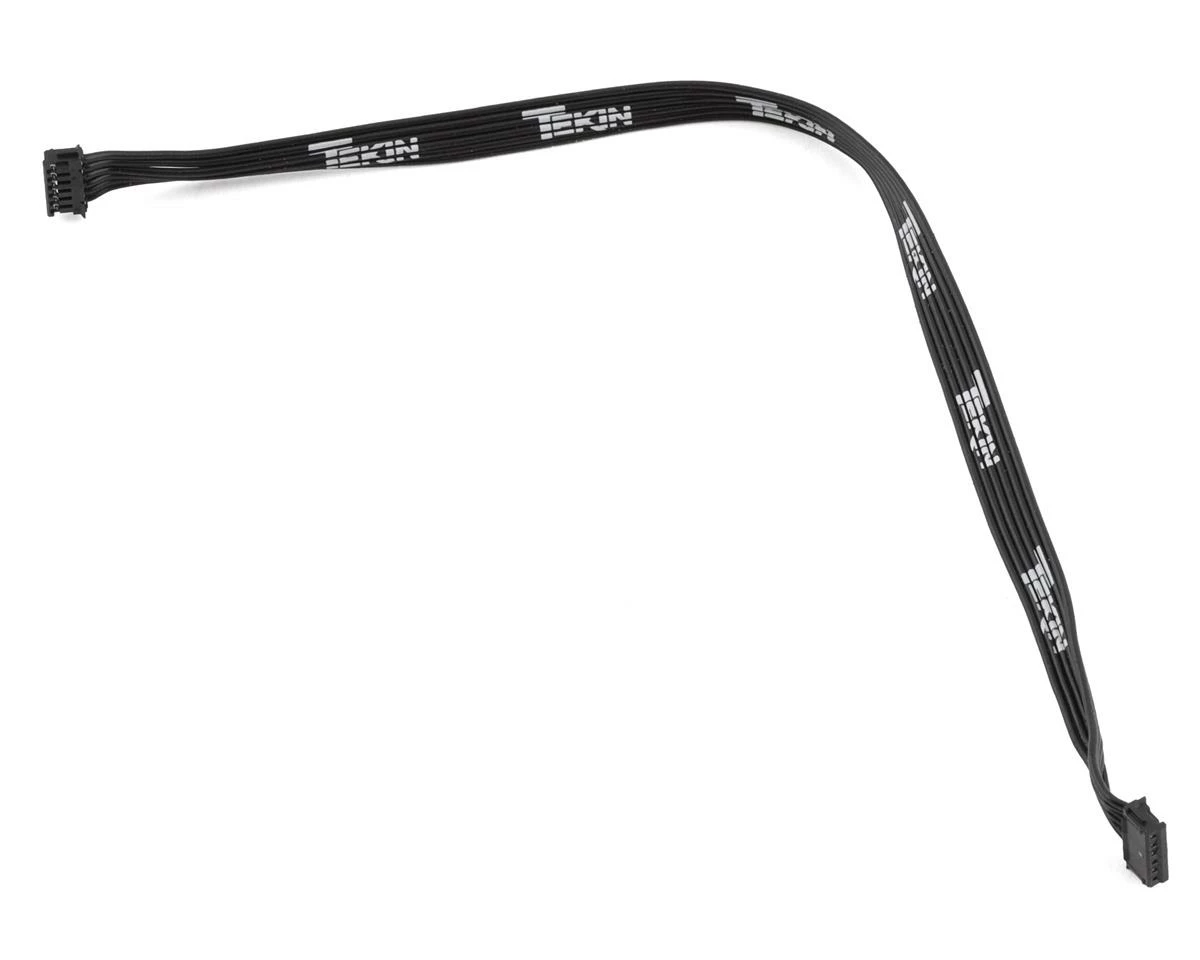

- Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
- Anodized End-bell plates maximize corrosion and wear resistance
- High RPM ABEC-5 Precision Bearings
- Oversized Front Bearing adds Durability
- Rebuild-able Design
Specifications:
Voltage Limit: 2S LiPo
KV: 6500
Weight: 7.8oz (221g)
Shaft Dimensions: 5mm (.196″) x 15.3mm
Motor Diameter: 1.40″ (35.85mm)
Motor Length: 2.50″ (62.5mm)
Max Operating Temperature: 180°F (82°C)
Max RPM: 65,000
Bearing Dimensions: Front: 5 x 14 x 5mm, Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
Mounting Pattern: 3mm @ 1″ (25.4mm) and 4mm @ 1″ (25.4mm)
