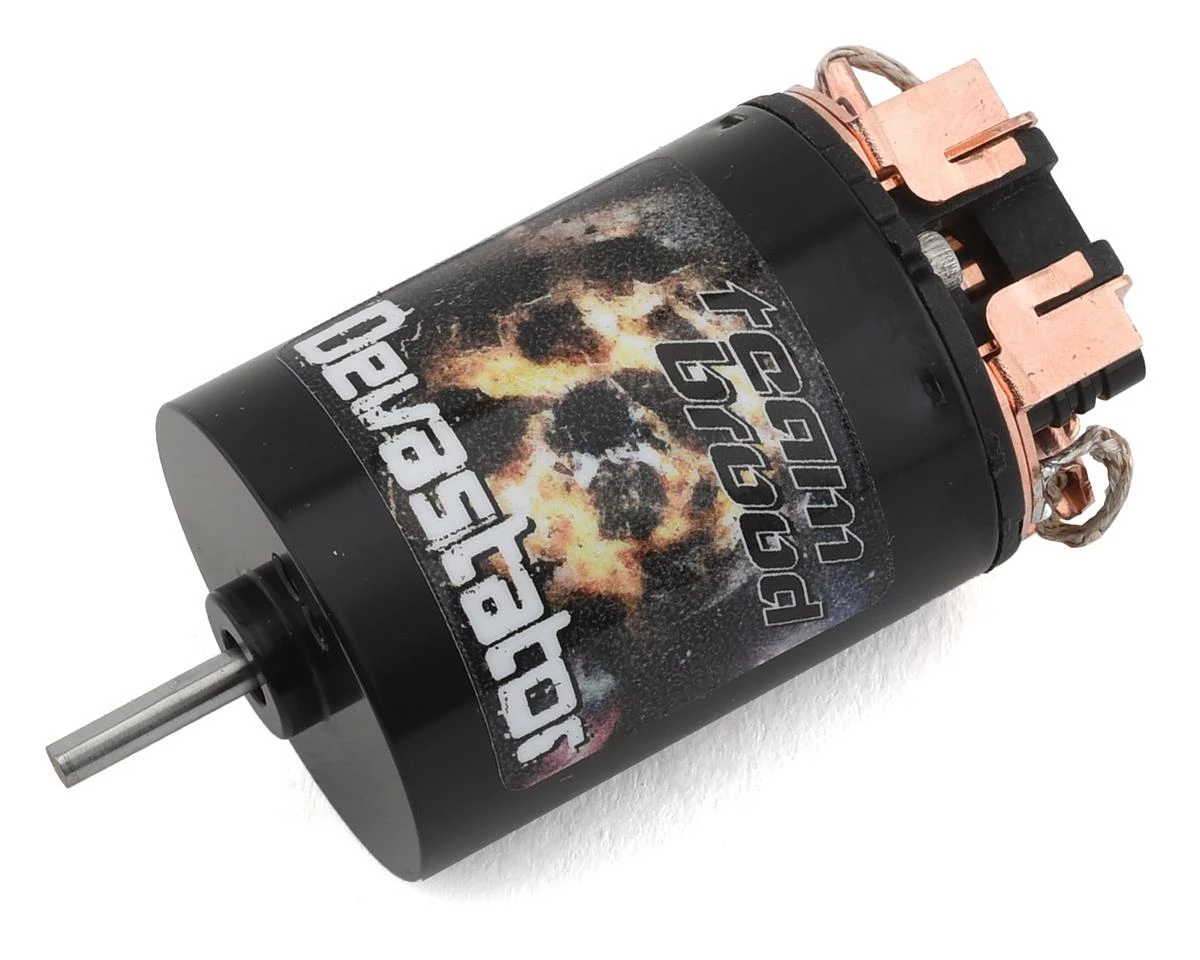

Team Brood Devastator Handwound 550 3 Segment Dual Magnet Brushed Motor (25T)

The Team Brood Devastator Handwound 550 3 Segment Dual Magnet Brushed Motor has been custom built from the ground up, and is a great choice as a high performance replacement for your TRX-4 or Redcat Gen8. Starting with Exclusive teardowns, the armatures are hand wound with precision using optimized wire gauges to create incredible horsepower. Each armature is epoxy dipped for durability using aerospace grade epoxy resin and drill balanced to a zero tolerance to provide the smoothest power delivery possible. The armatures are then installed into a CNC machined can that is machined from solid billet 1018 steel, down to 1.1mm thick. This helps to create an optimal air gap on each side of the armature for a stronger and more precise magnetic field.

The rigorous assembly process includes hand shimming, precise brush hood alignment, low impact break-in, and dyno testing to create one of the most powerful motors you can strap into your truck.

Features:

• Dual Magnet: Dual Magnet Can with TDK FB9 magnets – Maximizes torque and braking.
• CNC Machined Can: Machined from solid billet 1018 steel, down to 1.1mm thick. This helps to create an optimal air gap on each side of the armature for a stronger and more precise magnetic field.
• Adjustable Timing: Fine tune the motors powerband to optimal settings
• Rebuildable: Can be rebuilt to provide maximum power and longevity
• Dual Precision Ball Bearings: Reduces friction provides increased efficiency and power
• Aluminum Heatsinks: Additional cooling provides for a more efficient motor
• Standup Brushes: Long lasting performance
• Springs: Optimal Tension Springs
• Warranty: 30 Day Limited through manufacturer

Hand-Wound Armature:

• 25 Turn
• Processed from start to finish using the state of the art techniques, materials and equipment
• Pattern wound by the best winders in the world using the highest grade copper wire
• Welded using high-tech silver brazing rod
• Epoxy dipped with the aerospace grade epoxy resin
• Precision drill balanced
• Tested with precision meters
• Engraved with the wind on the armature shaft

Build Features:

• Diamond Trued Commutator: Provides a perfectly round cut
• Zapped Magnets: Assures magnets are at full and even strength
• Cleaned and Lubed Bearings: Allows for the smoothest operation
• Precision-Spaced Armature: Centers the Armature in the magnetic field with minimal play
• Precision-Measured Springs: Assures both springs are at the optimal tension

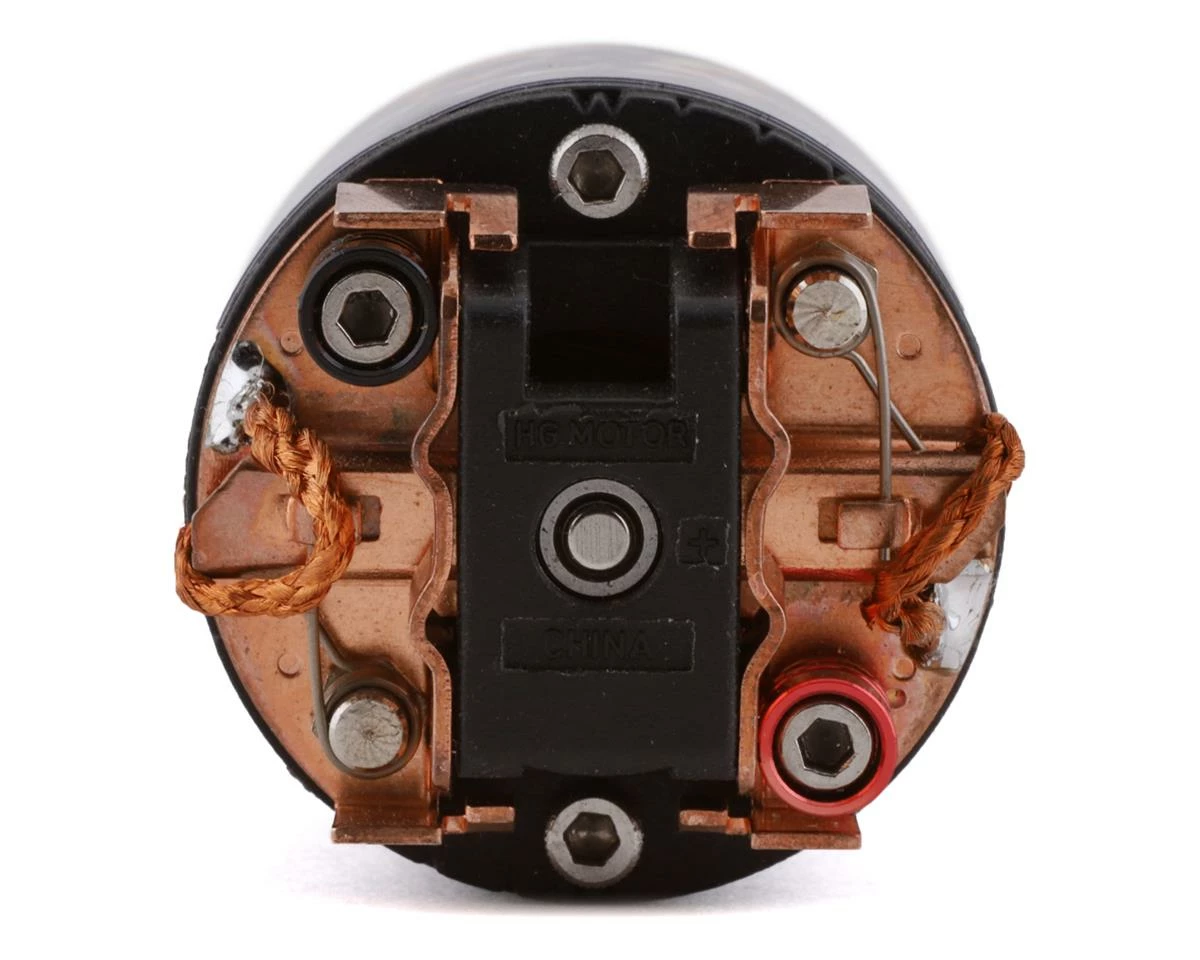

• Aligned Brush Hoods: Allows the brushes to make full contact allowing even wear and max power
• Tested: Each component is tested on precision calibrated equipment
• Dyno-Tuned: Guarantees the motor is producing its maximum power, rpm and torque
• Fully Broken-In: Ready to install and run when you pull it out of the tube

Specifications:

• Motor:
• Poles: 2
• Magnets: Dual C6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature:
• Construction: Handwound
• Stack Design: Straight
• Slots: 3
• Web: 5mm
• Commutator Size: 7.5mm (.300″) Small
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 25
• Motor Dimensions:
• Weight: 8 ounces
• Length: 61mm
• Diameter: 35.85mm
• Shaft Size: 3.175mm (1/8″)
• Mounting Pattern: Standard 540 M3x25mm

This product was added to our catalog on February 4, 2019
