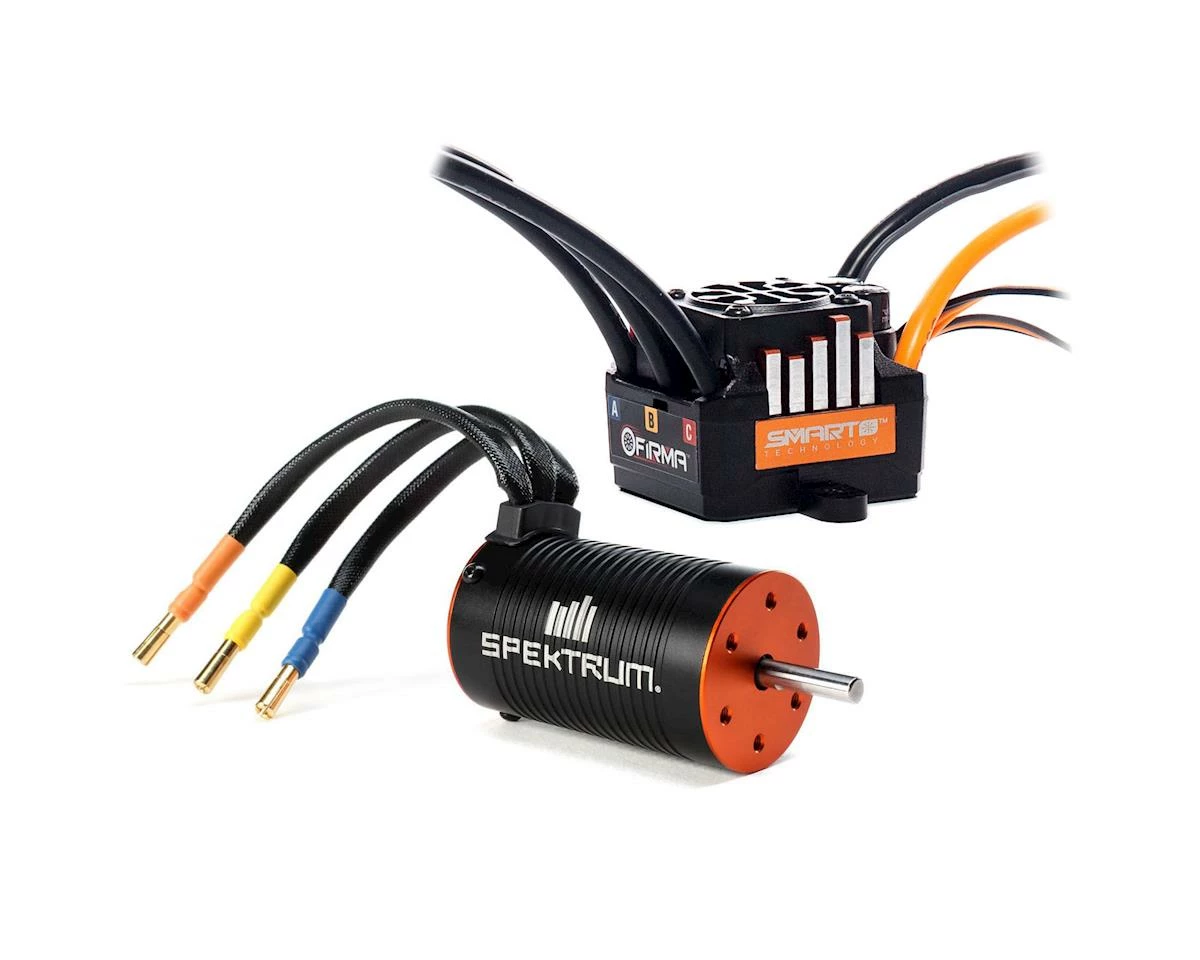

Spektrum RC Firma 85 Amp Sensorless Brushless Smart ESC & Motor Combo (3300Kv)

Spektrum Firma 85 Amp Sensorless Brushless Smart ESC & Motor Combo. Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine “plug-and-play” simplicity with the ability to communicate with other Smart electronics.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you’ll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won’t need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You’re able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Multiple options for easy programming:

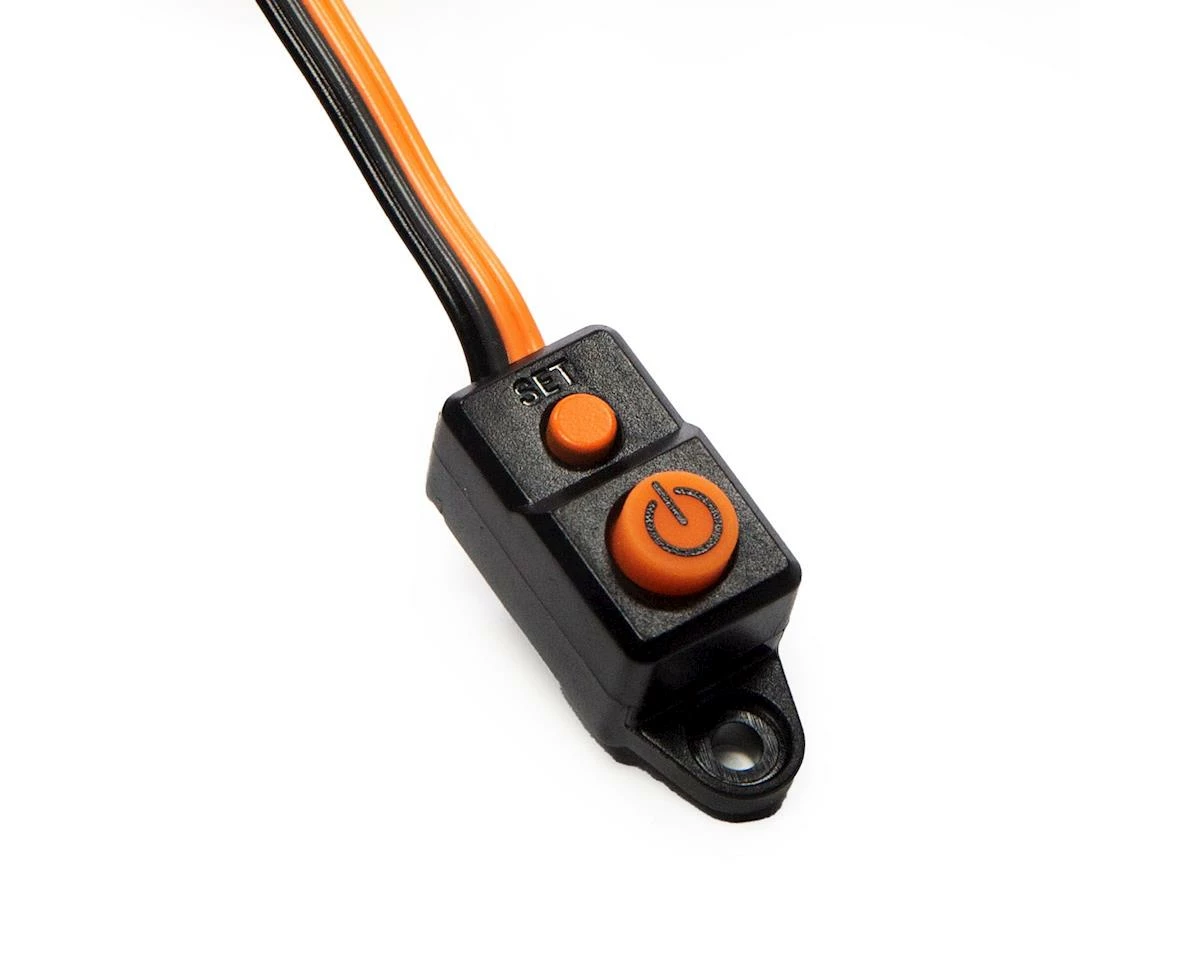

• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry’s leading ESC manufacturer
• Hand-picked combo for 4WD 1/10th scale surface applications running on 3s Lipo setups
• Includes high performance and durability Spektrum Firma 3300kV Brushless motor
• High current adjustable BEC (6v or 7.4v @ 4 Amps)
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

Adjustable Timing: No

Auto Cutoff: Yes

Battery Input Lead: 12AWG 5.1″ (130mm)

Battery Type: LiPo (3.7V per cell)

BEC: Yes

BEC Continuous Current: 4A

BEC Maximum Burst Current: 8A

BEC Type: Switch Mode

BEC Voltage: 6V/7.4V

Brakes: Yes

Connector Type: IC3

Drive Type: Forward/Brake/Reverse

Efficiency: 82%

Forward: Yes

Input Voltage: 2-3S LiPo, do not exceed 3S (11.1V) with thtis motor

Low-Voltage Cutoff Programmable: Yes

Maximum Burst Current: 550A

Maximum Continuous Current: 33A

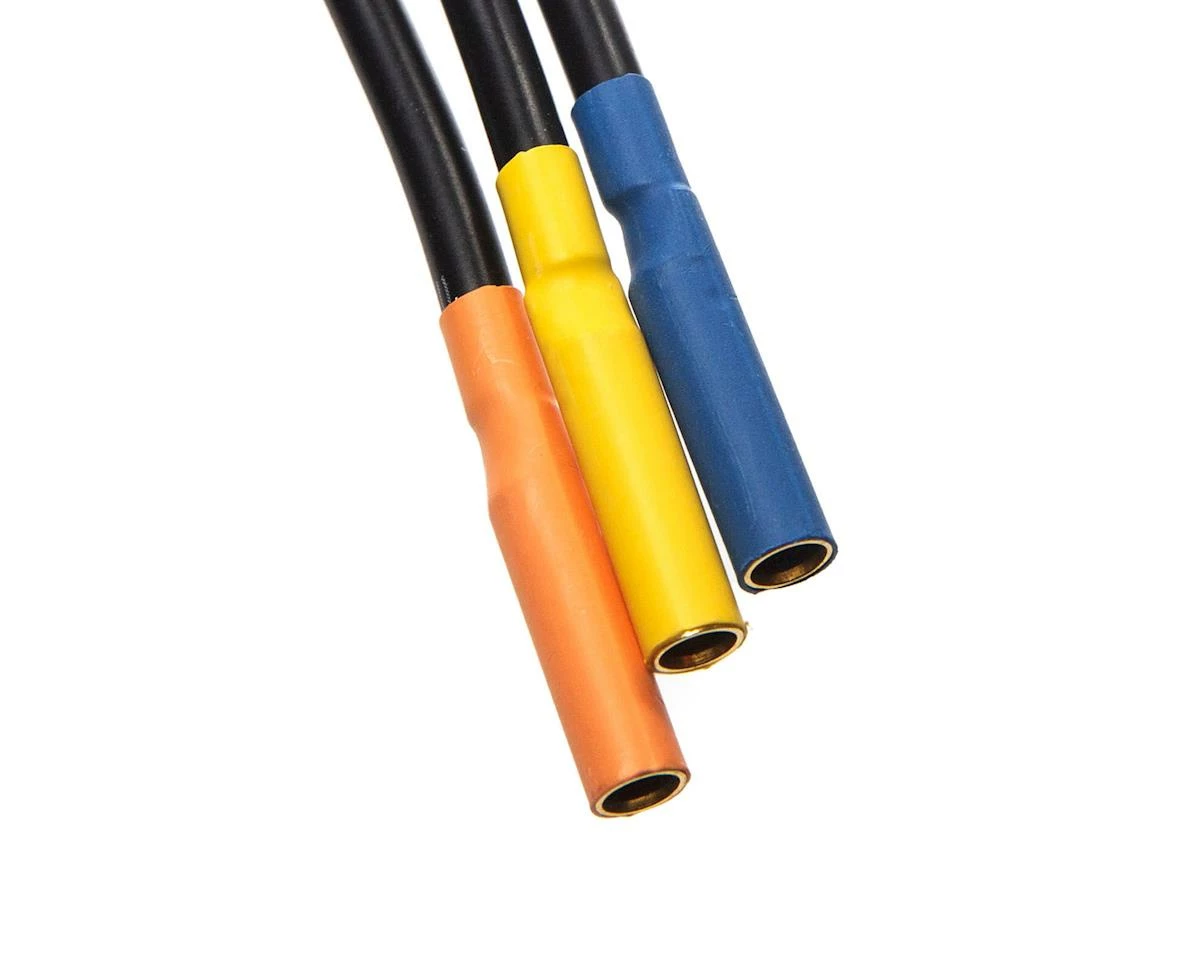

Motor Connector: 4mm Bullet

Motor Design: Inrunner

Motor Output Lead: 12AWG 5.1 in (130mm)

Motor Type: Brushless – Sensorless

Number of Poles: 4

Outer Diameter: 1.41″ (36 mm)

Output: 430W(2S), 780W(3S)

Product Height: 1.3″ (33 mm)

Product Length: 1.7″ (43 mm)

Product Weight: 0.255lbs (116g)

Product Width: 2.1″ (53 mm)

Programmable: Yes

Reverse: Yes

RPM/Volt (Kv): 38,400 @ 12V

Shaft Diameter: 0.125″ (3 mm)

Technology: Smart

Time Delay Brake: Yes

Water-Resistant: Yes

Wire Gauge: 12 AWG

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart sticker sheet
• (1) Product Manual

• Spektrum™ Surface Receiver
• Spektrum Smart Technology LiPo Battery
• Spektrum Transmitter
