Spektrum RC Avian 100Amp 3-6S Brushless Smart ESC (Version A)

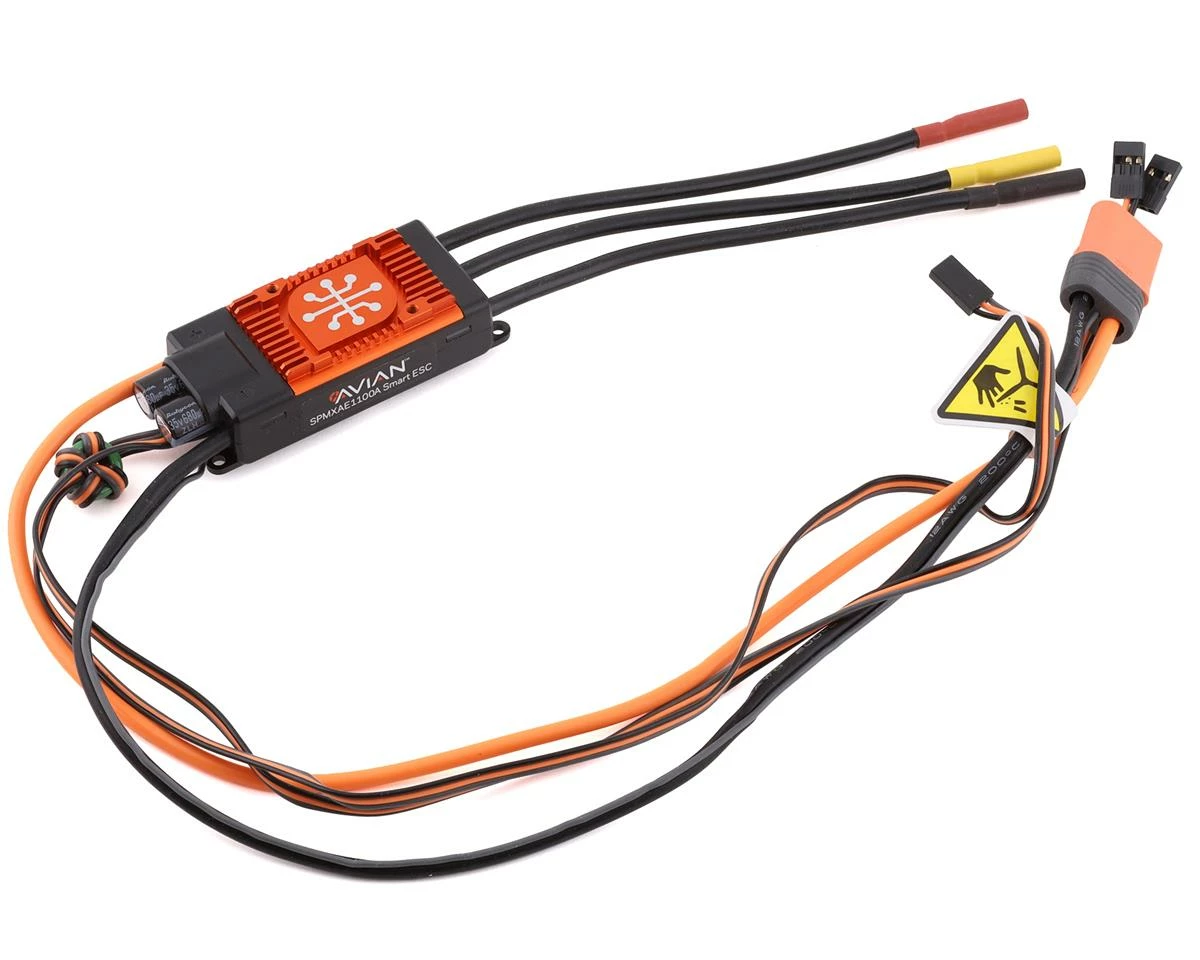

The Spektrum Avian 100Amp 3-6S Brushless Smart ESC is a great choice for those needing longer wiring leads in their model. Designed specifically for the E-flite F-16 Falcon, the Avian 100A features 17.71in throttle lead, 15.75in battery leads and 5.12in motor leads. This allows for the ESC to be mounted in an area that will receive better airflow. Package includes one ESC with pre-soldered IC5 and motor bullets.

Avian Smart Air ESCs do much more than regulate power. They provide a direct path to the vital operating data you need to reach peak performance. Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming:
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Throttle stick programming
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum engineers, in partnership with the industry’s leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case
• Heat dissipating design
• Tabs included for a hard mount
• Aluminum heat sink for high efficiency
• Adjustable high-power BEC
• Dual BEC power connectors
• Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
• High heat-resistant IC connectors, backwards compatible with EC connectors
• Limited 1-year warranty

Specifications:
Input Voltage: 3S – 6S LiPo

Length: 3″ (76 mm)
Width: 1.4″ (36 mm)
Height: 1.3″ (33 mm)
Product Weight: 4.4oz (126g)
Battery Input Lead: 15.75in (400mm) 12AWG with IC5 connector

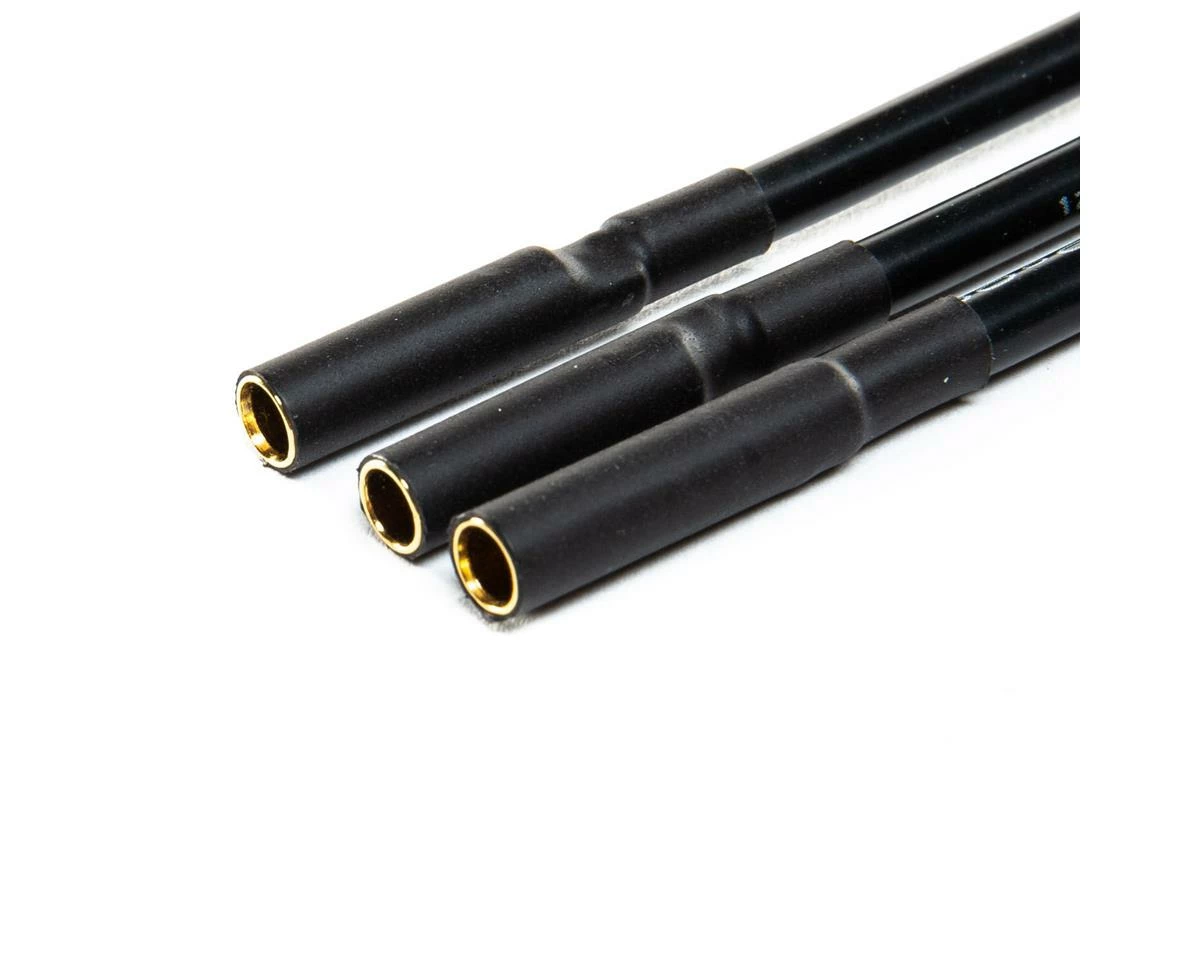

Motor Output Lead: 5.12in (130mm) 12AWG with 4.0mm bullet connector
Maximum Continuous Current: 100A
Maximum Burst Current: 120A
BEC Type: Switch
BEC Voltage: 6V/7.4V/8.4V adjustable
BEC Continuous Current: 8A
BEC Maximum Burst Current: 25A

Includes:
