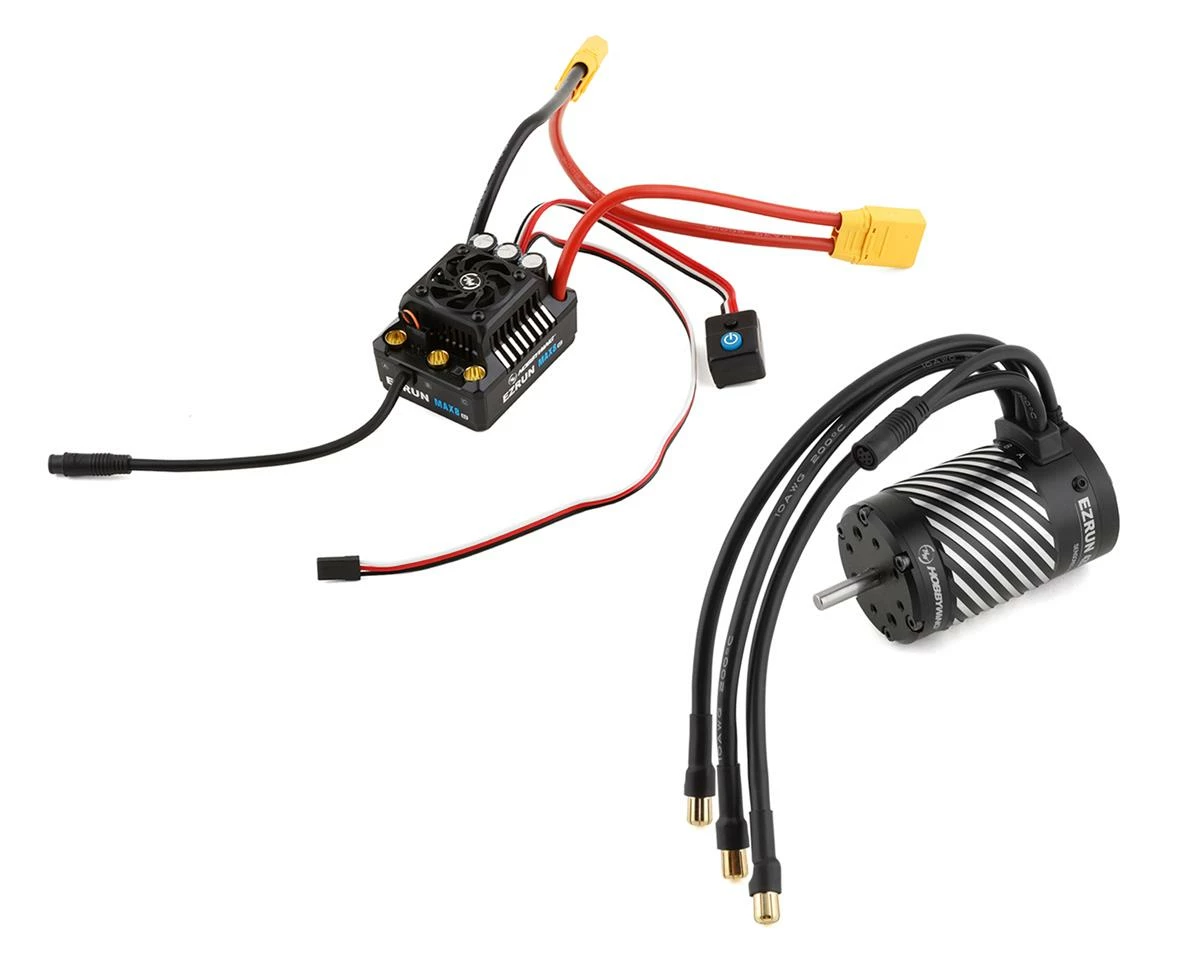

The Hobbywing EZRun Max8 G2 Waterproof Brushless ESC and Motor Combo includes the awesome 4268SD G2 – 2500kV sensored motor to deliver high torque, fast acceleration response and stable power output for 1/8 scale applications. Special technology for temperature control is implemented by the motor and provides less heat more efficiently (efficiency rate of up to 90%). The EZRun Max8 G2 Waterproof Brushless ESC, with installed XT90 connectors is built with high quality components and loaded with cutting edge firmware.Â
Features:Â
- ESC:Â
- Waterproof
- Sensored or Sensorless Brushless Operation
- 6S LiPo CompatibleÂ
- Dual XT90 PlugsÂ
- Motor:
- 4 pole rotor for high torque, fast acceleration response and stable power output.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 G2 ESC
Specifications:
- ESC:
- Continuous Current:Â 160AÂ
- Peak Current:Â 1050AÂ
- Plug Type:Â XT90Â
- Motor Type: Sensored or Sensorless BrushlessÂ
- Applications:Â 1/8 Touring Car, Buggy, Truggy, Monster TruckÂ
- Brushless Motor Limit 4S LiPo/12-Cell NiMH:Â 3000 (4274 size motor)Â
- Brushless Motor Limit 6S LiPo/18-Cell NiMH:Â 2400 (4274 size motor)Â
- LiPo/NiMH Cells:Â 3-6S LiPo / 9-18 Cell NiMHÂ
- BEC Output: 6V/7.4V/8.4V Switchable, Continuous current of 10A (Switch mode BEC)Â
- Cooling Fan:Â Powered by the stable BEC voltage of 6V/7.2VÂ
- Size (LxWxH):Â 60x48x40.5mmÂ
- Weight:Â 192gÂ
- Programming Port: Fan/PRG Port Â

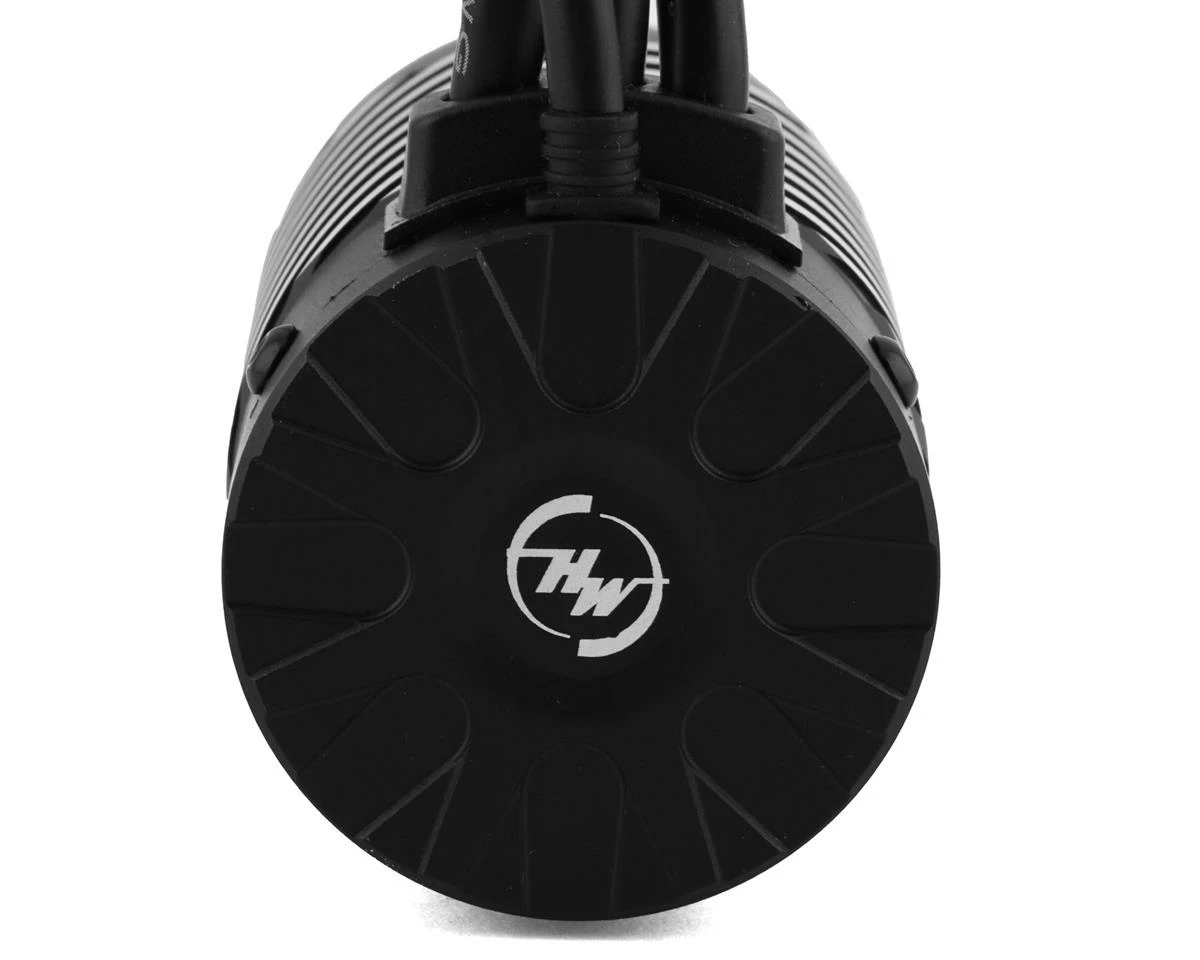

- Motor:
- Pole:Â 4Â
- KV(No-load):Â 2500Â
- R. (u):Â 0.0065Â
- Current No-load A:Â 4.8
- Motor D & L (mm):Â D=42, L=68Â
- Shaft D & L of the projecting part (mm):Â D=5, L=18.5Â
- LiPo(S):Â 2-4Â
- Weight:Â 355g (12.52oz)Â
- Applicable:Â 1/8th Off-Road, 1/10th Truck
Includes:
- EZRun Max8 ESC with XT90 connectors

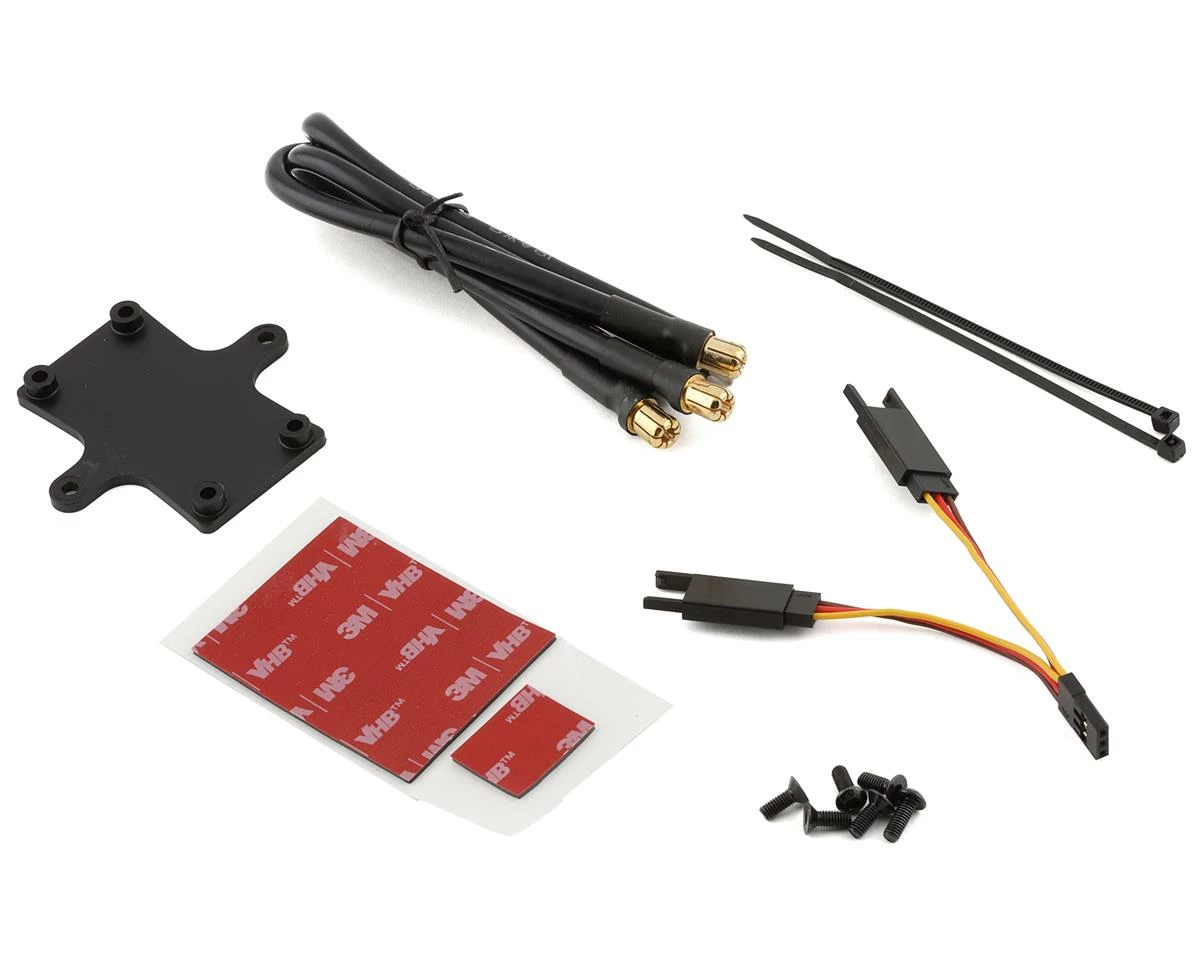

- Accessories (double sided tape, etc)
- 4268SD – 2500kV Brushless sensored motorÂ
