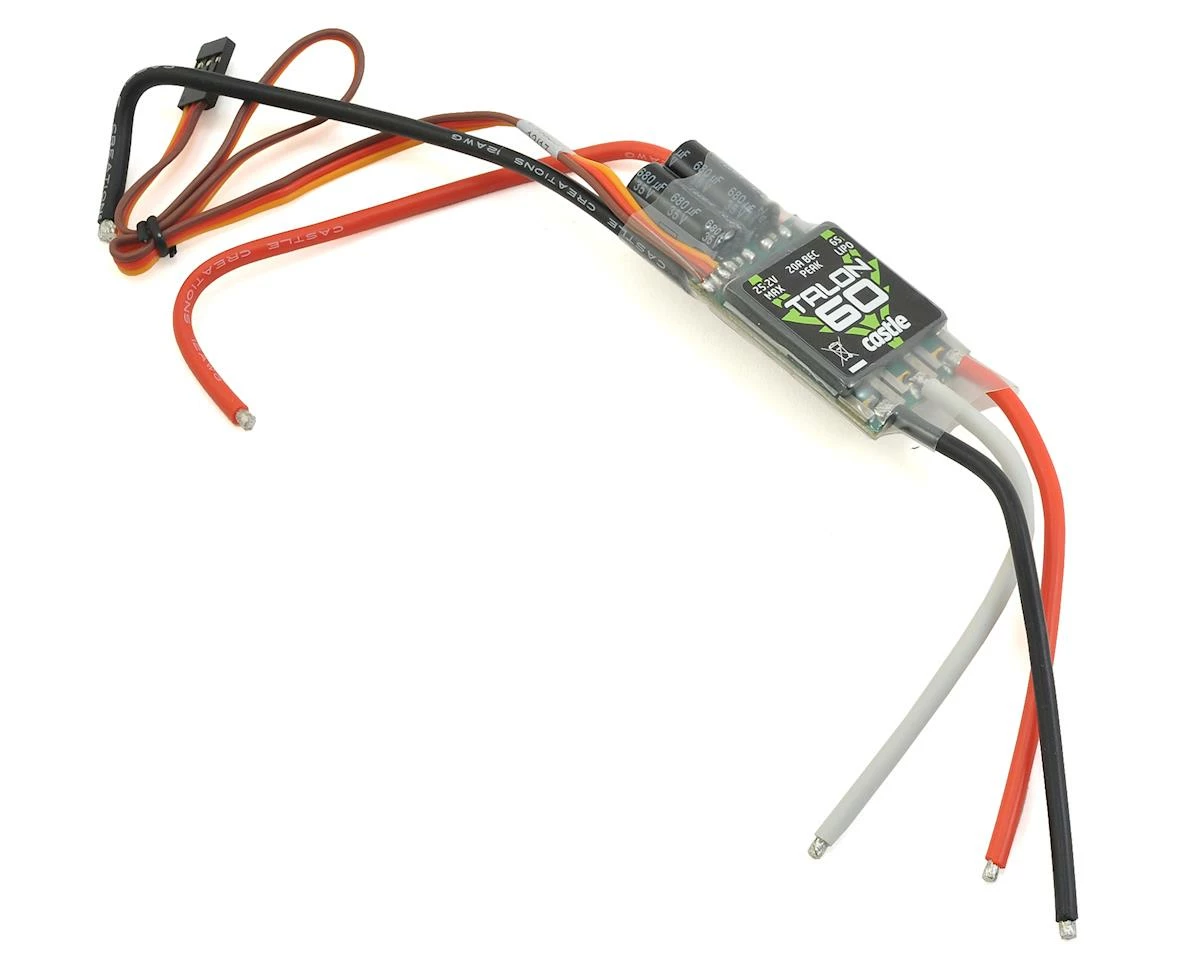

Castle Creations Talon 60 Brushless ESC W/Heavy Duty BEC

This is the Castle Creations Talon 60 Brushless ESC. Castle’s Talon 60 ESC sports a Heavy Duty 20A BEC designed for today’s servos, pumping out up to 20 amps peak power and 8 amps of continuous power to keep even the hungriest servos happy.

Designed for Helis
Talon 60 is ideal for helicopters drawing 1,400 watts on 6S. It’s a great fit for small scale or 3D helis ranging from “360-450” class helicopters swinging 325mm-360mm rotorblades. Of course, Talon offers Castle’s industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB Adapter (coupon for free Castle Link adapter included in package) and the free Castle Link GUI running on a Windows PC!

Great for Fixed Wing
The Talon 60 is perfect for scale, sport, and aerobatic planes that are categorized as .32-.60 range that require up to 1,400 watts on 6s.

Unbelievable Pricing
Castle Talon delivers premium performance and features at an amazing price.

Telemetry Capable
Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there’s interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item # 010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# 010-0148-00) and a compatible Spektrum Radio.

Specifications:

• Input Voltage:
• MIN: 2S LiPo
• MAX: 6S LiPo
• Max continuous amperage at full throttle: 60 amps (rating determined with 5mph airflow across the ESC)
• BEC voltage (voltage regulator for powering radio and servos): User selectable choice of 6 or 8 volt output
• BEC output:
• 20 amp peak*
• 8 amp continuous
• Dimensions:
• Width: 1.19″ (30.2mm)
• Length: 2.56″ (65mm)
• Depth: 0.41″ (10.6mm)
• Weight: 2.0 oz. (57g) with wires
• Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
• Items needed for operation or installation:
• Battery connector (sold separately)

This product was added to our catalog on December 20, 2017
